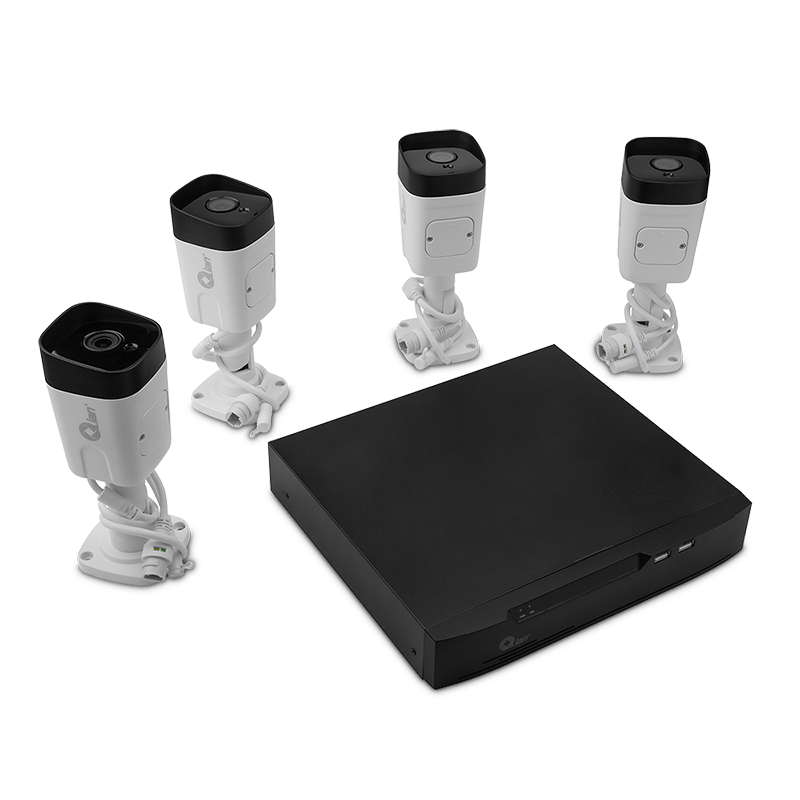

Qian 8ch NVR Kit with 5MP POE Bullet Camera 4PCS with 1T HDD

Qian 8ch NVR Kit with 5MP POE Bullet Camera 4PCS with 1T HDD - SKU: QET-N0854

Qian

website.view.item34

website.view.item7 20.00

website.view.item8 30.00

website.view.item9 30.00

website.view.item10 1.00

website.view.item12

website.view.item15

With Power over Ethernet (PoE) support, the Qian NVR Kit eliminates the need for separate power cables for each IP camera. PoE technology allows both data transmission and power delivery through a single Ethernet cable, simplifying the installation process and reducing cable clutter.

With support for 8MP decoding or 1080P decoding capability, the Qian NVR Kit enables high-quality video playback with clear and detailed footage, allowing better identification of objects, faces, or events captured by the connected IP cameras.

With VGA and HDMI outputs, the Qian NVR Kit offers flexibility in choosing display options.

website.view.item22

Video Input	IP Camera Input x 8 channels
Trigger Events	Motion Detection, Video Loss, IVS
Network Function	HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Max. User Access	8 users (via Windows/ Android/ iOS devices)
Interoperability	ONVIF, SDK
Storage	HDD 1TB, (SATA interface x1, up to 8TB)
Network interface	RJ-45 (10/100 Mbps) self-adaptive Ethernet port x1

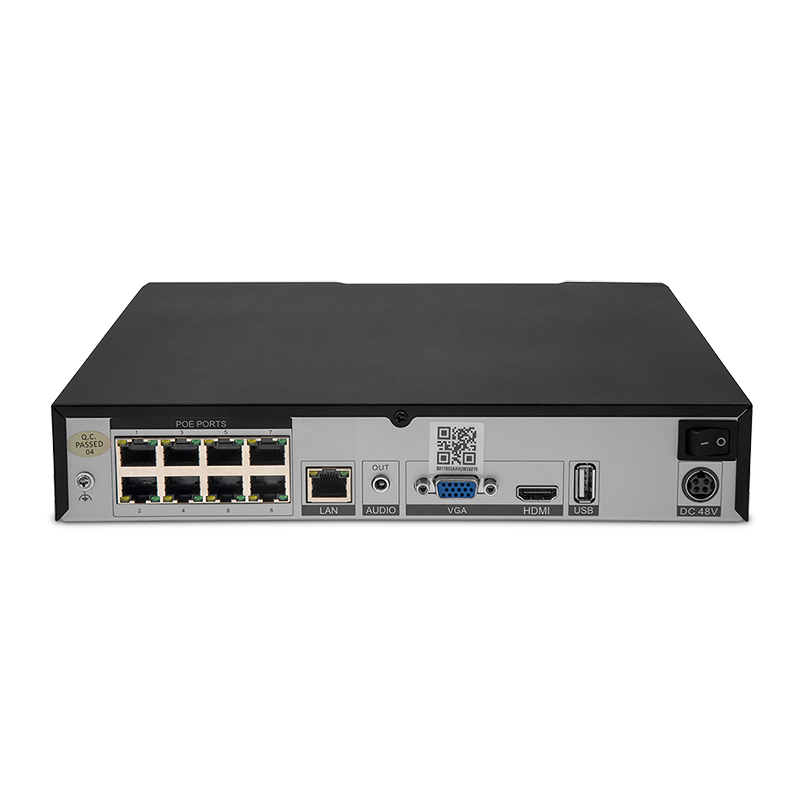

Interface	POE: 8 Ports (IEEE 802.3af), 48W Audio Output x1 USB2.0 port x2 HDMI x1 VGA x1
Camera type	IP Camera 5MP Bullet x 4pcs (Qian PN: QEC-IBUL5)
Camera Resolution	Max to 2560(H)×1920(V)
Support Features	Human Detection, Intrusion Detection, Rest Button, Scheduling, Event, Sync Playback, Search Mode (Time/Date), Alarm, Picture grid Backup Mode: USB Device, Network
Incoming Bandwidth	40 Mbps
Management Software	NVR Management Software installed
Support APP	Inview Pro for smart phone/devices.
Input Power	NVR: DC48V/1.25A Camera: DC12V/POE (IEEE 802.3af)
Power Consumption	NVR: < 5W (without HDD) Camera: Max 5W
Working Temperature / Humidity	NVR: -10°C ~ 50°C (14°F ~ 122°F) / Less than 90% RH Camera: -25°C ~ 55°C (-13°F ~ 131°F ) / Less than 90% RH
Certifications	CE/FCC
Dimensions	NVR: 255 × 235.1 × 47.5 mm (10.04 × 9.26 × 1.87 inch) Camera: 181.9 × 66.26 × 66.17 mm (7.16 × 2.61 × 2.60 inch)
Net Weight	NVR: 1kg (2.2 lb) without HDD Camera: 0.35kg (0.77 lb)/pc
video compression code rate	H.264/ H.265/ H.265+(Smart Encode)
Outgoing Bandwidth	40 Mbps
Video output	HDMI Output: 3840×2160, 1920×1080, 1280×1024, 1024×768 VGA Output: 1920×1080, 1280×1024, 1024×768
Decoding Capacity	1ch 8MP, 4ch 1080P, 8ch D1@30fps
Streaming Capability	Support dual stream
Multi-screen Display	1/4/9
Resolution	Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, etc.
Recording Mode	Manual, Schedule (Regular, Continuous), Event

Create a Robust Surveillance Network

The Qian NVR Kit supports up to 8-channel IP security camera inputs with Power over Ethernet (PoE) capabilities, ensuring easy installation and efficient power management. With its flexible capability, you can connect a variety of cameras to create a comprehensive surveillance network tailored to your specific requirements.

See Every Detail with Unmatched Clarity

Experience amazing video quality with up to 1 channel at 8MP or 4 channels at 1080P decoding capability. The simultaneous VGA/HDMI video output delivers crisp, clear images, and the HDMI port supports a maximum resolution of 4K. Enjoy immersive monitoring experiences with exceptional detail and clarity!

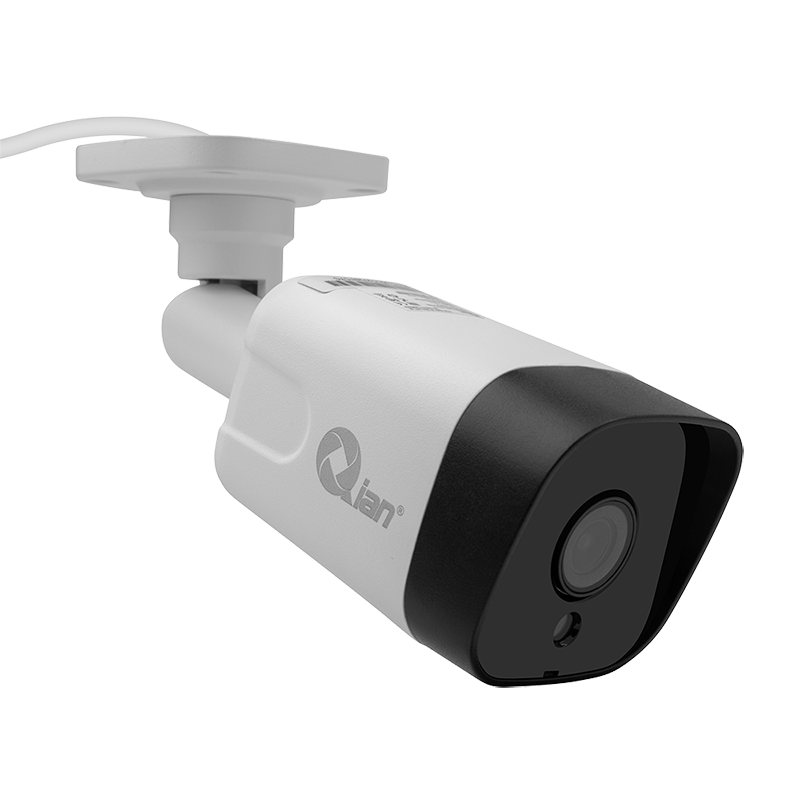

Equipped with Four 5MP IP Security Cameras

- DWDR (Digital Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- HLC (High Beam Compensation)
- BLC (Backlight Compensation)
- Defogging technology
- 5MP
- Night vision
- Range of up to 30 meters.
Whether you are monitoring your home, office, store or factory, Qian NVR Equipment offers unparalleled surveillance capabilities.

Simplified installation

With Power over Ethernet (PoE) support, the Qian NVR Kit eliminates the need for separate power cables for each IP camera. PoE technology enables both data transmission and power delivery over a single Ethernet cable, simplifying the installation process and reducing cable clutter.

Flexible display options

With VGA and HDMI outputs, the Qian NVR Kit offers flexibility in choosing display options. You can connect it to a variety of monitors or display devices, including computer monitors, televisions, or projectors, depending on specific requirements and available equipment.

Greater detail and clarity

A comprehensive surveillance solution designed to meet the security needs of homes, offices, stores and factories. The 5MP resolution of the 4 included IP cameras offers sharp and detailed images. This advanced kit combines cutting-edge features with easy-to-use functionality, providing reliable monitoring.

Smart Monitoring with Qian Vision

With the built-in Qian Vision intelligent monitoring software, you can easily manage and control your surveillance system. The intuitive interface allows easy access to live streams, playback recorded footage, configure settings, and customize alerts. In addition, you can download the application on iOS and Android to be aware of every detail.
